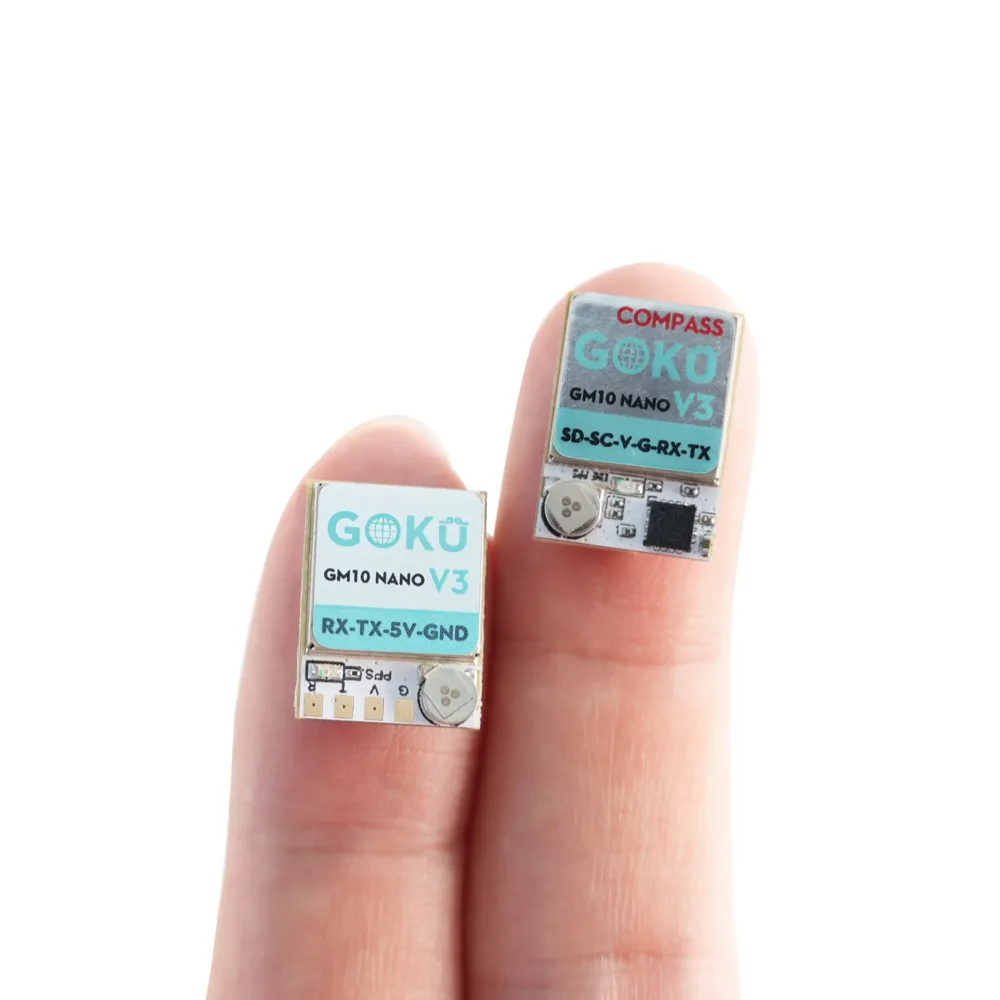

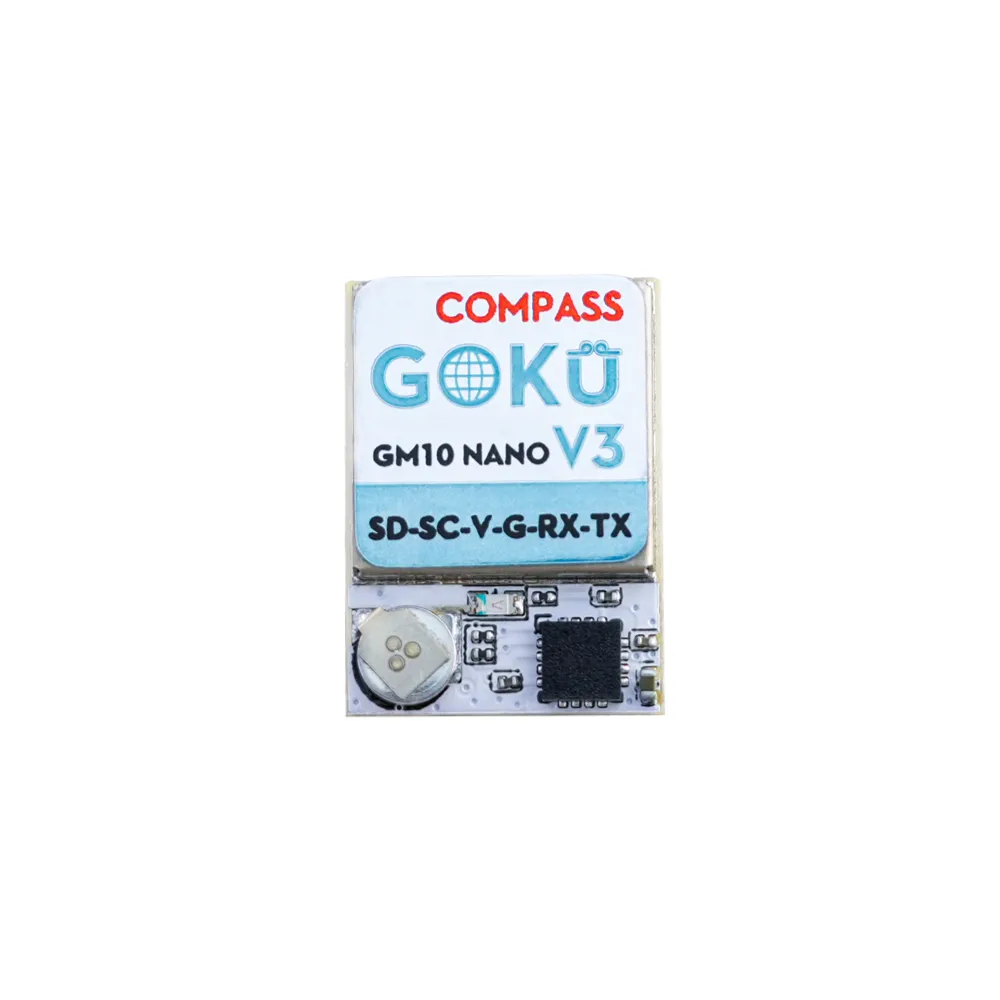

GOKU GM10 Nano V3 GPS w/compass

DESCRIPTION:

• Brand: FLYWOO
• Model: GM10 NANO V3 GPS w/compass

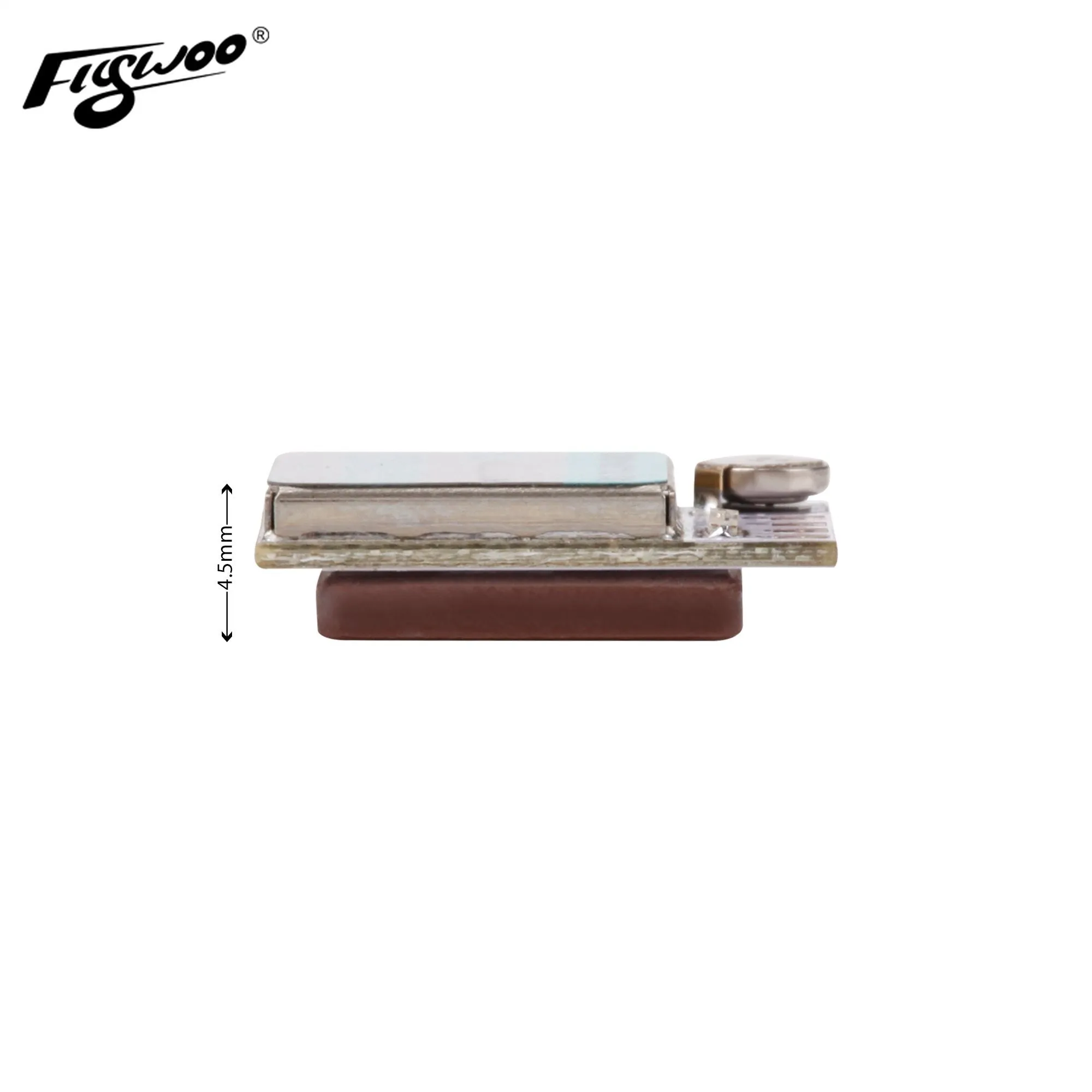

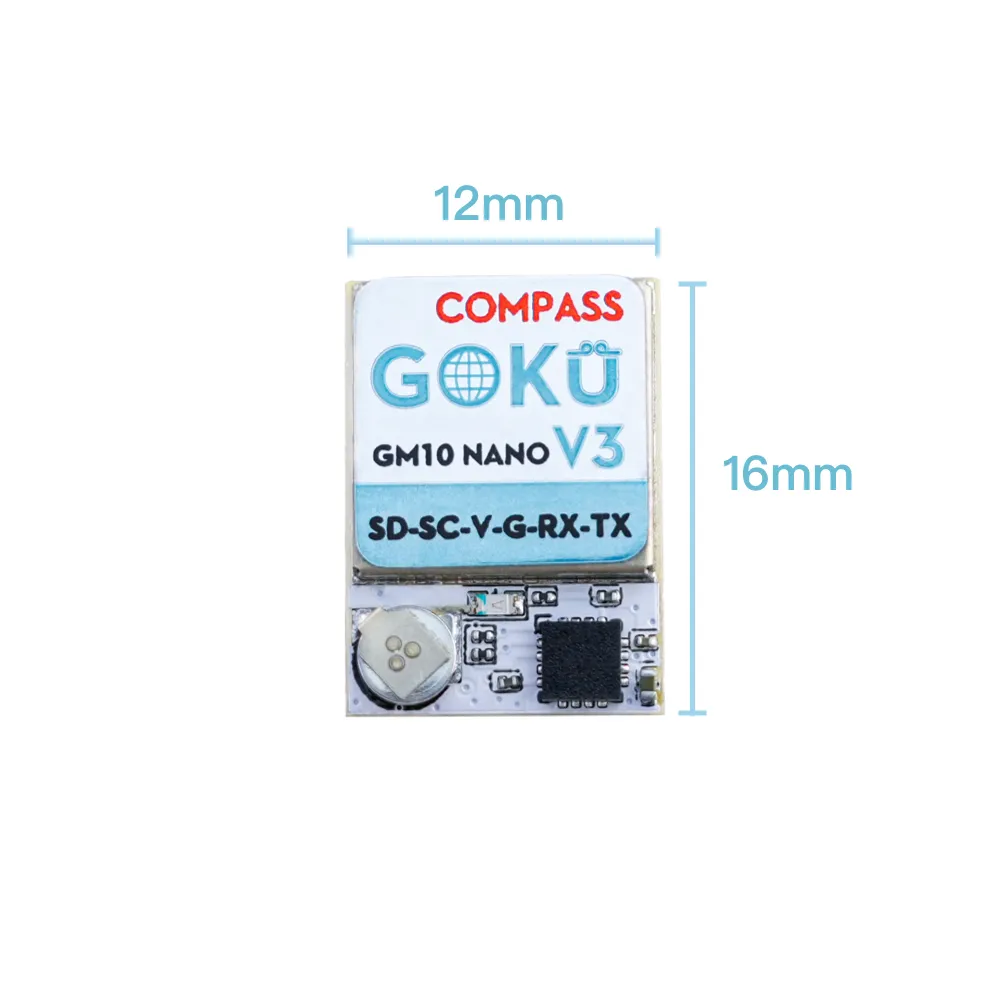

• Dimension :12mm*17mm*5mm

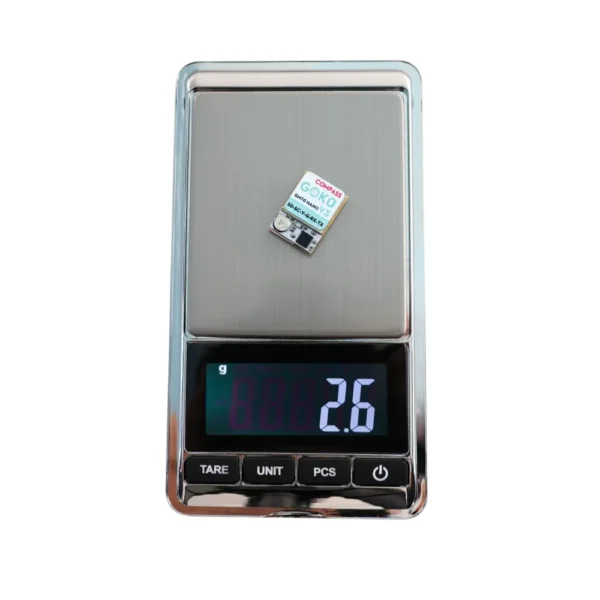

• Weight : 2.6g
• Connector : 4pins Pad

FEATURES:

• GPS Module. Three Modules.
• 4pins Pad, ultra light weight
• With a compass and a plug.

PLUG & PLAY, NO NEED FOR SOLDERING.

SPECIFICATIONS:

• Electrical Characteristics
• Chipset : M10050(Tenth Generation Chip)
• Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
• Default Protocol : GPS,Galileo,BeiDou
• Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
• Channels : 72 Searching Channel

SENSITIVITY:

• Tracking : -162dBm
• Reacquisition : -160dBm

DATA & UPDATE RATE:

• Support Rate : 4800bps to 921600bps,Default 115200bps
• Data Level : TTL or RS-232,Default TTL level
• Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
• Output frequency : 1Hz-10Hz，Default 10Hz

OPERATIONAL LIMITS:

• Altitude : 50,000m Max
• Velocity : 500m/s Max
• Acceleration : Less than 4g

POWER CONSUMPTION:

• VCC : DC Voltage ：3.3-5V
• Operating temp :　-40 °C ~ +85°C
• Storage Temp : -40°C ~ +105°C

LED STATUS:

• PPS LED: Yellow. PPS LED not bright when GPS not fixed, flashing when fixed.
• The Module’s Pins: RX TX 3.3-5V GND

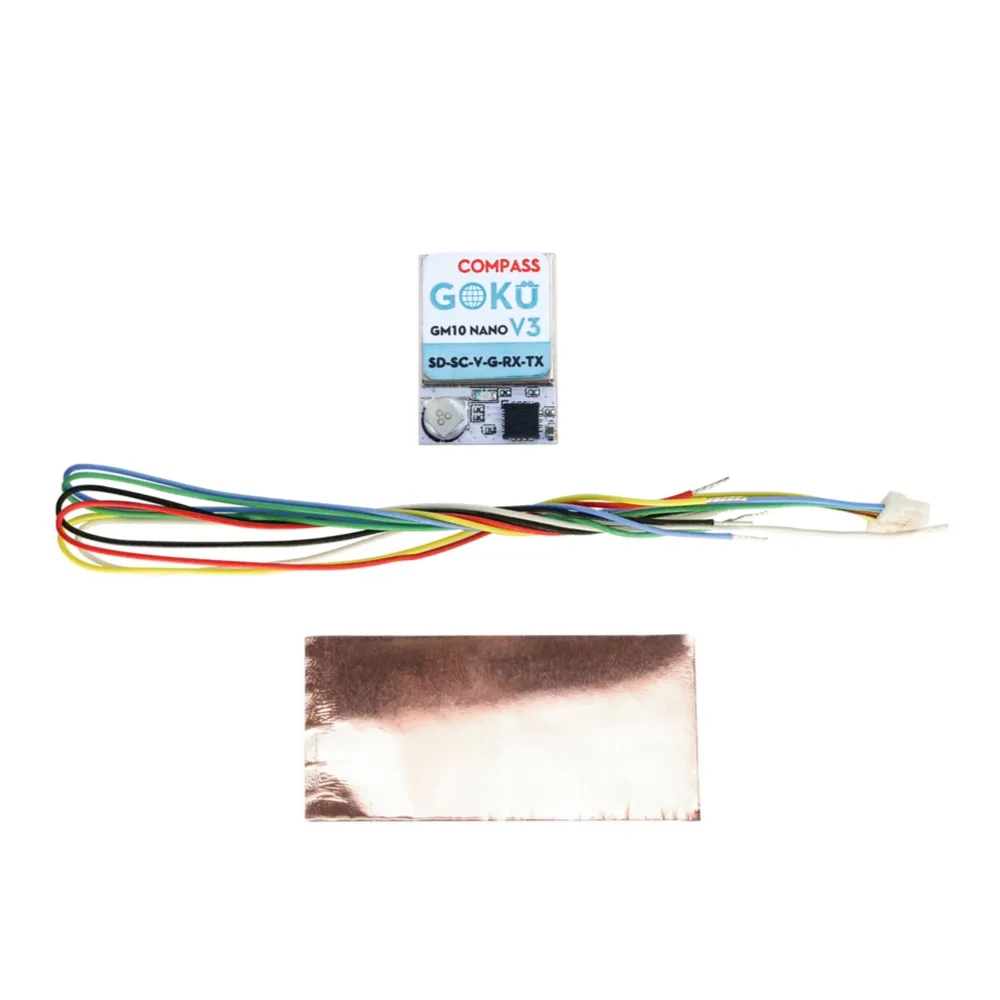

PACKAGE CONTENTS:

• 1x GM10 NANO V3 GPS w/compass
• 1x 100mm Cable
• 1x Copper Foil
